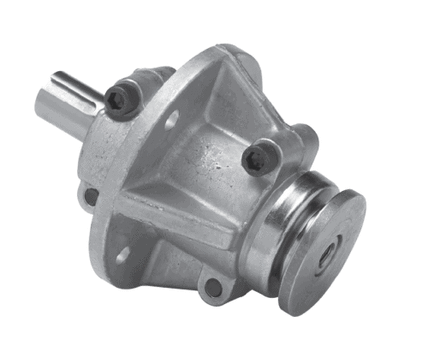

S240 Series Spindle, 1.00 Inch (in) Shaft Diameter, Ductile Iron Gears cast with Integral Weights

The CAD Models provided by Superior gearbox are generalized representations of our product offering and manufacturing capabilities. A variety of modifications can be made to our gear drives and components to meet your specific requirements. For modification requests, pricing, and availability, please contact Superior Gearbox Company directly.
Unit of Measure

Specifications

Brands

 N/A Superior Gearbox Company

Housing Material

 N/A Aluminum

Shaft Material

 N/A Steel

Shaft Diameter

 N/A 1.00 in

Applications

 N/A Garden Tractor Lawn Tractor Mower Decks Riding Mowers Zero-turn Mowers

Minimum Order

 N/A Contact Superior Gearbox for Pricing and Availability

Features

Features

 N/A
  • Two-piece aluminum housing for high strength, corrosion resistance and thermal capacity
  • Die cast, fully machined case halves capture and protect bearings and double lip seals
  • Tapered roller bearings provide increased load capacity and bearing life
  • High strength, cost effective ductile iron gears are cast with integral weights
  • 1.00" shaft made of high strength steel standard
  • The 240 series spindle weighs approximately 4.5 pounds, depending upon shaft and adapter configuration
  • All Superior spindles are available with a variety of anti-warp devices to increase durability in mower applications
  • The 240 is recommended for medium duty use where its low profile and short blade-to-deck dimension is needed
