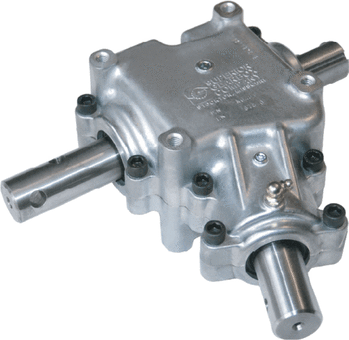

The CAD Models provided by Superior Gearbox are generalized representations of our product offering and manufacturing capabilities. A variety of modifications can be made to our gear drives and components to meet your specific requirements. For modification requests, pricing, and availability, please contact Superior Gearbox Company directly.
Unit of Measure
Specifications
Brands |
N/A Superior Gearbox Company |
Housing Material |
N/A Aluminum |
Shaft Material |
N/A Steel |
Shaft Diameter |
N/A 1.25 in |
Gear Ratio |
N/A 1:1 |
Applications |
N/A Our R20A Series Gearbox is ideal for applications such as Grain Augers and Elevators. These agriculture gear drives have been rigorously field tested to meet the most demanding portable auger requirements. |
Minimum Order |
N/A Contact Superior Gearbox for Pricing and Availability |
Rating Chart
Input Speed 100 rpm |
N/A Input Power: 8.43 hp (6.29 kW) Output Torque: 5313 in·lb (600 N·m) |
Input Speed 540 rpm |
N/A Input Power: 35.46 hp (26.44 kW) Output Torque: 4139 in·lb (468 N·m) |
Input Speed 1000 rpm |
N/A Input Power: 53.23 hp (39.39 kW) Output Torque: 3355 in·lb (291 N·m) |
Input Speed 1750 rpm |
N/A Input Power: 71.42 hp (53.26 kW) Output Torque: 2572 in·lb (379 N·m) |
Features
Features |
N/A
|
