The CAD Models provided by Superior Gearbox are generalized representations of our product offering and manufacturing capabilities. A variety of modifications can be made to our gear drives and components to meet your specific requirements. For modification requests, pricing, and availability, please contact Superior Gearbox Company directly.

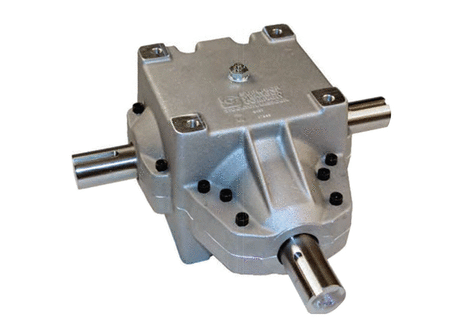

Unit of Measure

Specifications

Gear Ratio1 N/A 1:1.857 (Increasers)

Shaft Diameter

 N/A 1.75 in

Rotation

 N/A E

Gear Design

 N/A 26, 14 Forged Straight Bevel

Housing Material

 N/A Aluminum

Shaft Material

 N/A Steel

Applications

 N/A Beet Defoliators Conveyors Flail Choppers Grain Carts Manure and Water Pumps Potato Diggers Road and Highway Equipment Silo Unloaders

Rating Chart

Input Speed 100 rpm

 N/A Input Power: 35.65 hp (26.58 kW) Output Torque: 12098 in·lb (1367 N·m)

Input Speed 540 rpm

 N/A Input Power: 121.61 hp (90.69 kW) Output Torque: 7643 in·lb (863 N·m)

Input Speed 1000 rpm

 N/A Input Power: 162.59 hp (121.25 kW) Output Torque: 5518 in·lb (623 N·m)

Features

Features

 N/A
  • Two-piece aluminum housing for high strength, corrosion resistance and thermal capacity
  • Precision machined for exact gear mesh and bearing preload
  • Tapered roller bearings provide increased load capacity and bearing life
  • Serviced with 80W90 gear lubricant, run and leak tested before shipment
  • The 600 Series weighs 60/70 lbs. including 85 oz of lubricant

Note

Note

 N/A LIMITATIONS ON HORSEPOWER AND TORQUE RATINGS: The horsepower and torque ratings given here are generalizations. Different conditions for various applications may result in higher or lower horsepower capacities. Under certain conditions the maximum indicated rpm may be exceeded. For these reasons the ratings cannot be guaranteed for any application. Prototype testing should be conducted for each application before production.

Contact Superior Gearbox for your special requirements.
  • 1 All ratings specified with the # 1 shaft as the input
